Continuous tube production lines demand reliable strip joining technology. Every coil change requires a weld that combines mechanical strength with process reliability to ensure uninterrupted production. The AS0 220 B-P 500 Flash Butt Welding Machine from iDEAL-Werk is designed to deliver consistent weld quality, short cycle times and stable performance in automated manufacturing environments.
Process Reliability – The Foundation of Efficient Tube Production
In today’s highly automated tube mills, productivity depends on uninterrupted material flow. High strip speeds, increasing quality requirements and continuous production schedules leave little room for downtime. Any interruption during a coil change can affect the performance of the entire production line and generate additional costs.
For decades, iDEAL-Werk has developed resistance welding solutions for demanding industrial applications. The AS0 220 B-P 500 has been designed for continuous operation in the steel and tube industry, combining robust engineering with precise process control to support reliable weld quality and machine availability.
Flash Butt Welding – Efficient, Precise and Repeatable
Flash butt welding is one of the most reliable methods for joining steel strips in continuous production. During the process, strip ends are electrically heated through a controlled flashing process, removing oxides and surface contaminants before being joined under high upsetting force to create a homogeneous metallurgical bond.
As an option, iDEAL-Werk offers an integrated hydraulic flash trimming system (HE), which automatically removes weld flash from the outer flat and horizontal surfaces immediately after welding.
Unlike conventional joining methods, flash butt welding does not require perfectly machined strip ends. This reduces preparation time while maintaining consistent weld quality, supporting shorter cycle times and reliable operation in continuous 24/7 production environments.

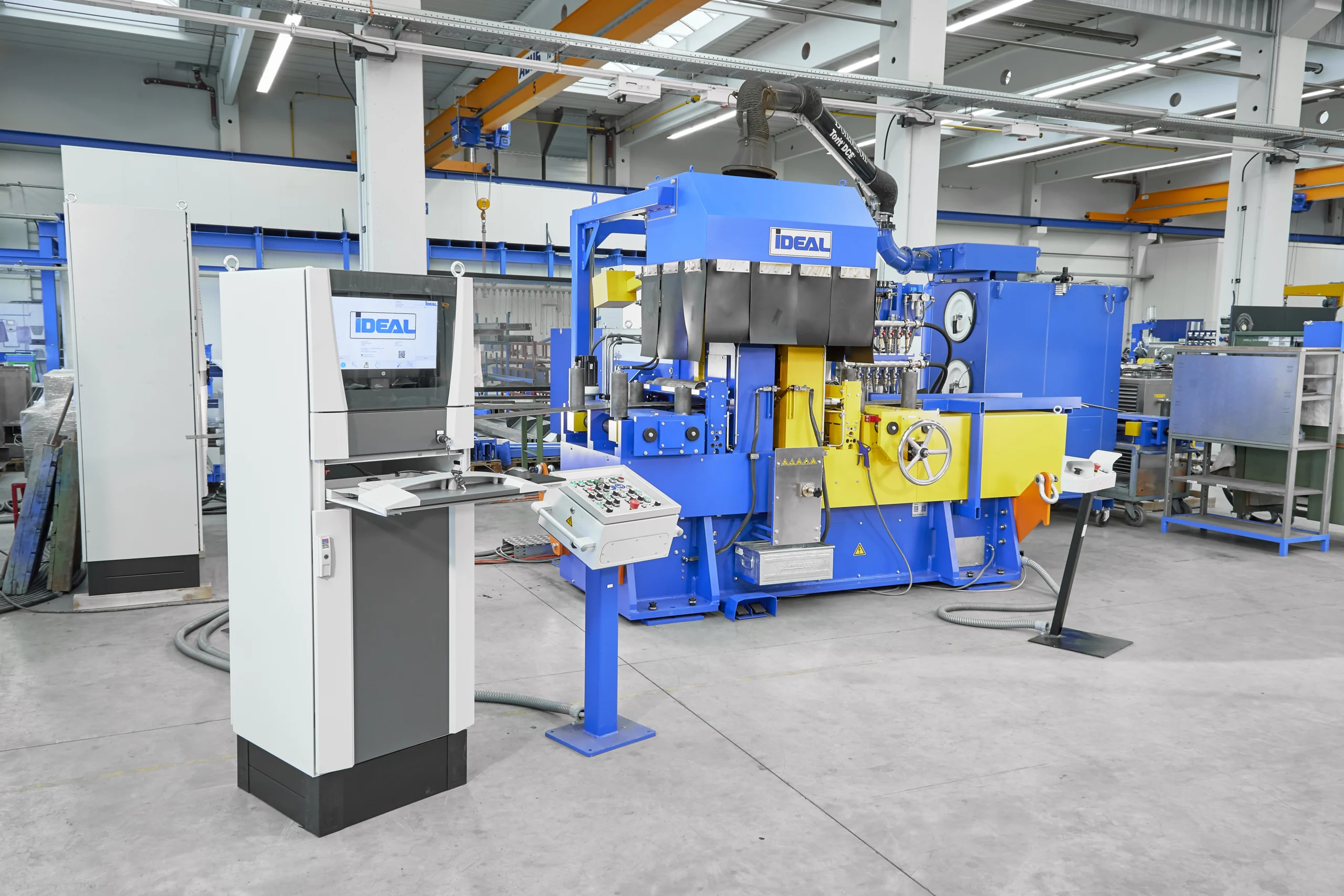

AS0 220 B-P 500 – Designed for Industrial Continuous Operation
The AS0 220 B-P 500 combines heavy-duty machine construction with advanced control technology. The system is capable of welding steel strip cross-sections from 380 to 3,400 mm², strip widths from 150 to 450 mm and material thicknesses ranging from 2.5 to 7.5 mm. Mild steel SAE 1012 is among the reference materials processed on the system.
Precise control of the flashing and upsetting phases helps minimise strip failures, reduce scrap rates and prevent unexpected production stoppages, supporting improved overall equipment effectiveness (OEE).
Versatile Applications Across the Steel Industry
Although primarily developed for continuous tube production lines, the AS0 220 B-P 500 is suitable for a wide range of steel processing applications.
Typical installations include steel and strip rolling mills, pickling and coating lines, roll forming systems, stamping and press lines, heavy-gauge strip processing and other industrial applications. Wherever continuous material flow is essential, reliable strip joining plays an important role in maintaining production efficiency.
Made in Germany – Engineering Expertise
For decades, iDEAL-Werk has designed and manufactured resistance welding systems at its headquarters in Germany. The AS0 220 B-P 500 combines flash butt welding technology with precise process control to support reliable strip joining in continuous production environments.
A Key Technology for Continuous Production
Joining steel strip is a critical process step in continuous tube manufacturing. Through reliable welding cycles, robust machine design and controlled processes, the AS0 220 B-P 500 helps manufacturers improve productivity, increase line availability and reduce operating costs.
